AIR FREIGHT CONTAINER SIZES
Lower Deck Container-26 (LD-26 )
 |
- External Dimension (LxWxH): 4,060 x 2,240 x 1,630 (mm) - Maximum gross weight: 747/DC-10: 6,033 kg (13,300 lb) - Volumn : N/A - Suitable for: B747, B777, DC-10 |

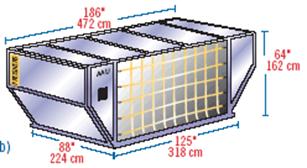

Lower Deck Container-29 (LD-29 )
 |
- External Dimension (LxWxH): 4,720 x 2,240 x 1,620 (mm) - Maximum gross weight: 6,033 kg (13,300 lb) - Volumn : 14.2 m 3 / 501 ft 3 - Suitable for: B747 |

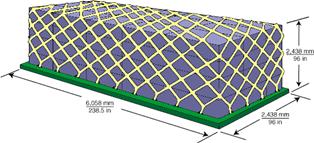

Main Deck Pallet with Net Type 1/1S-IATA Prefix:PG
 |
- External Dimension (LxWxH): 6,058 x 2,438 x 2,438 (mm) - Maximum gross weight: 13,608 kg (30,000 lb) - Volumn : 33.25 m 3 / 1,174 ft 3 - Suitable for: DC10-30 Freighter, 747F |
Main Deck Pallet with Net Type 2/2Q-IATA Prefix:PM
 |
- External Dimension (LxWxH): 3,175 x 2,438 x 2,438 (mm) - Maximum gross weight: 6,804 kg (15,000 lb) - Volumn : 17.16 m 3 / 606 ft 3 - Suitable for: DC10-30 Freighter, 747F |
Main Deck Pallet with Net Type 2H-IATA Prefix:PM
 |
- External Dimension (LxWxH): 3,175 x 2,438 x 2,997 (mm) - Maximum gross weight: 6,804 kg (15,000 lb) - Volumn : 21.16 m 3 / 747 ft 3 - Suitable for: DC10-30 Freighter, 747F |
