AIR FREIGHT CONTAINER SIZES

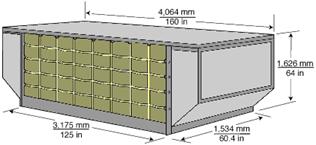

Lower Deck Container-6 (LD-6)
 |
- External Dimension (LxWxH): 3,175 x 1,534 x 1,626 (mm) - Maximum gross weight: 3,175 kg (7,000 lb) - Volumn : 6.94 m 3 / 245 ft 3 - Suitable for: 747, 747F, L1011 |
Upper Deck Container-7 (LD-7)
 |
- External Dimension (LxWxH): 3,175 x 2,235 x 1,626 (mm) - Maximum gross weight: 6,033 kg (13,300 lb) - Volumn : 9.91 m 3 / 350 ft 3 - Suitable for: N/A |
Lower Deck Container-8 (LD-8 )
 |
- External Dimension (LxWxH): 2,438 x 1,534 x 1,626 (mm) - Maximum gross weight: 2,449 kg (5,400 lb) - Volumn : 6.94 m 3 / 245 ft 3 - Suitable for: 777,767 |
Lower Deck Container-9 (LD-9 )
 |
- External Dimension (LxWxH): 3,175 x 2,235 x 1,626 (mm) - Maximum gross weight: 6,033 kg (13,300 lb) - Volumn : 9.91 m 3 / 350 ft 3 - Suitable for: 747,747F, L1011 |
Lower Deck Container-11 (LD-11 )
 |
- External Dimension (LxWxH): 3,170 x 1,530 x 1,620 (mm) - Maximum gross weight: 3,176 kg (7,002 lb) - Volumn : 6.9 m 3 / 242 ft 3 - Suitable for: A300, A310, A330, A340, B747, B777, DC-10, MD-11, L1011 |
