AIR FREIGHT CONTAINER SIZES

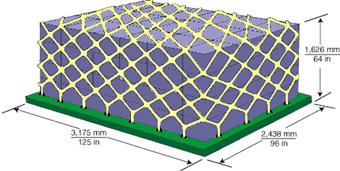

Pallet with Net-IATA Type 2WA-IATA Prefix: PM
 |
- External Dimension (LxWxH): 3,175 x 2,438 x 1,626 (mm) - Maximum gross weight: 5,035 kg (11,100 lb) - Volumn : 15.8 m 3 / 557 ft 3 - Suitable for: DC10-30 Freighter, DC10-30, 747, 747F |

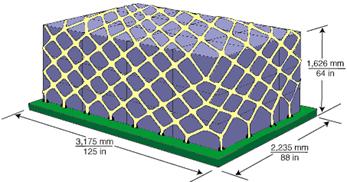

Pallet with Net-IATA Type 5-IATA Prefix: PA
 |
- External Dimension (LxWxH): 3,175 x 2,235 x 1,626 (mm) - Maximum gross weight: 4,626 kg (10,200 lb) - Volumn : 9.91 m 3 / 350 ft 3 - Suitable for: DC10-30 Freighter, DC10-30, 747, 747F, 777,767-300 |
Lower Deck Pallet with Net-IATA Type 6-IATA Prefix: PL
 |
- External Dimension (LxWxH): 3,175 x 1,534 x 1,626 (mm) - Maximum gross weight: 3,175 kg (7,000 lb) - Volumn : 6.94 m 3 / 245 ft 3 - Suitable for: DC10, DC10-30 Freighter, DC10-30, 747, 777 |

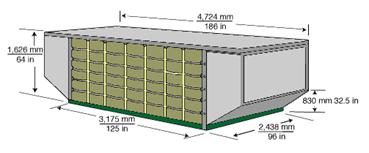

Lower Deck Container-IATA Type 2BG-IATA Prefix: AMU
 |
- External Dimension (LxWxH): 3,175 x 2,438 x 1,626 (mm) - Maximum gross weight: 6,033 kg (13,300 lb) - Volumn : 13.7 m 3 / 480 ft 3 - Suitable for: 747, 747F |
Main Deck Container-IATA Type 2/2Q-IATA Prefix: AMA
 |
- External Dimension (LxWxH): 3,175 x 2,438 x 2,438 (mm) - Maximum gross weight: 6,804 kg (15,000 lb) - Volumn : 17.16 m 3 / 606 ft 3 - Suitable for: 747F |
